KEGG enrichment analysis with clusterProfiler
Last updated on 2025-12-02 | Edit this page
Overview
Questions
- How can we perform pathway analysis using KEGG?
- What insights can KEGG enrichment provide about differentially expressed genes
Objectives
- Learn how to run KEGG over-representation and GSEA-style analysis in R.
- Understand how to interpret pathway-level results.
- Generate and visualise KEGG pathway figures.
Introduction
The KEGG (Kyoto Encyclopedia of Genes and Genomes) database links
genes to curated biological pathways, offering a powerful foundation for
understanding cellular functions at a systems level and making
meaningful biological interpretations. clusterProfiler
allows us to access KEGG and apply both ORA (using
enrichKEGG function) and GSEA (using gseKEGG
function) to extract pathway-level insights from our RNA-seq data.
KEGG analysis
Before running enrichment, we need to confirm the correct KEGG
organism code for mouse (mmu). You can verify by
searching:
R
kegg_organism <- "mmu"
search_kegg_organism(kegg_organism, by='kegg_code')
OUTPUT
kegg_code scientific_name common_name
29 mmur Microcebus murinus gray mouse lemur
34 mmu Mus musculus house mouse
9090 mmuc Mycolicibacterium mucogenicum Mycolicibacterium mucogenicumOver-representation analysis with enrichKEGG
To run ORA using KEGG database, we need to specify the gene list,
KEGG organism code and p-value cut-off. In this example, we take the top
500 genes from the ranked gene list debasal_genelist,
specify the organism code mmu (defined as `kegg_organism)
and use 0.05 as the p-value cut-off.
We can use head() function to briefly inspect the
results of enrichKEGG.
R
kk <- enrichKEGG(gene = names(debasal_genelist)[1:500],
organism = kegg_organism,
pvalueCutoff = 0.05)
OUTPUT
Reading KEGG annotation online: "https://rest.kegg.jp/link/mmu/pathway"...OUTPUT
Reading KEGG annotation online: "https://rest.kegg.jp/list/pathway/mmu"...R
head(kk)
OUTPUT
category
mmu04110 Cellular Processes
mmu04060 Environmental Information Processing
mmu05323 Human Diseases
mmu04061 Environmental Information Processing
mmu04062 Organismal Systems
mmu04914 Organismal Systems
subcategory ID
mmu04110 Cell growth and death mmu04110
mmu04060 Signaling molecules and interaction mmu04060
mmu05323 Immune disease mmu05323
mmu04061 Signaling molecules and interaction mmu04061
mmu04062 Immune system mmu04062
mmu04914 Endocrine system mmu04914
Description
mmu04110 Cell cycle
mmu04060 Cytokine-cytokine receptor interaction
mmu05323 Rheumatoid arthritis
mmu04061 Viral protein interaction with cytokine and cytokine receptor
mmu04062 Chemokine signaling pathway
mmu04914 Progesterone-mediated oocyte maturation
GeneRatio BgRatio RichFactor FoldEnrichment zScore pvalue
mmu04110 19/247 157/10644 0.12101911 5.215091 8.200826 3.563172e-09
mmu04060 24/247 294/10644 0.08163265 3.517806 6.747644 8.088296e-08
mmu05323 13/247 87/10644 0.14942529 6.439201 7.851470 9.190595e-08
mmu04061 12/247 95/10644 0.12631579 5.443341 6.704900 1.853385e-06
mmu04062 16/247 194/10644 0.08247423 3.554072 5.533530 1.118165e-05
mmu04914 10/247 93/10644 0.10752688 4.633669 5.424584 5.627105e-05
p.adjust qvalue
mmu04110 9.976881e-07 8.026513e-07
mmu04060 8.577889e-06 6.901008e-06
mmu05323 8.577889e-06 6.901008e-06
mmu04061 1.297369e-04 1.043748e-04
mmu04062 6.261723e-04 5.037627e-04
mmu04914 2.468240e-03 1.985727e-03
geneID
mmu04110 20877/434175/12235/77011/12236/76464/17218/12534/71988/268697/12428/17216/67849/17215/18817/17219/67052/105988/12532
mmu04060 12978/16878/77125/20311/29820/20308/20297/20305/12977/21948/17082/16182/232983/21942/18829/21926/20310/20309/16181/330122/14563/20296/12985/230405
mmu05323 110935/20311/20297/12977/14960/21926/14961/15001/68775/20310/330122/22339/20296
mmu04061 12978/20311/20308/20297/20305/12977/16182/18829/21926/20310/330122/20296
mmu04062 22324/20311/20308/20297/20305/15162/18829/18751/432530/20310/20309/94176/330122/11513/18796/20296
mmu04914 434175/12235/110033/12534/268697/432530/12428/18817/11513/12532
Count
mmu04110 19
mmu04060 24
mmu05323 13
mmu04061 12
mmu04062 16
mmu04914 10GSEA-style KEGG enrichment with gseKEGG
Similar to previous enrichment analysis with GO database, we can also
perform a GSEA-style enrichment using the KEGG database. To do so, we
use the gseKEGG and specify the entire ranked gene list
(debasal_genelist) rather than an arbitrary cutoff. In this
example, we test KEGG pathways between 3 and 800 genes using 10,000
permutations and NCBI Gene IDs. Results are filtered using a p-value
cut-off of 0.05.
R
kk2 <- gseKEGG(geneList = debasal_genelist,
organism = kegg_organism,
nPerm = 10000,
minGSSize = 3,
maxGSSize = 800,
pvalueCutoff = 0.05,
pAdjustMethod = "none",
keyType = "ncbi-geneid")
OUTPUT
Reading KEGG annotation online: "https://rest.kegg.jp/conv/ncbi-geneid/mmu"...OUTPUT
using 'fgsea' for GSEA analysis, please cite Korotkevich et al (2019).OUTPUT
preparing geneSet collections...OUTPUT
GSEA analysis...WARNING
Warning in .GSEA(geneList = geneList, exponent = exponent, minGSSize =
minGSSize, : We do not recommend using nPerm parameter incurrent and future
releasesWARNING
Warning in fgsea(pathways = geneSets, stats = geneList, nperm = nPerm, minSize
= minGSSize, : You are trying to run fgseaSimple. It is recommended to use
fgseaMultilevel. To run fgseaMultilevel, you need to remove the nperm argument
in the fgsea function call.WARNING
Warning in preparePathwaysAndStats(pathways, stats, minSize, maxSize, gseaParam, : There are ties in the preranked stats (0.98% of the list).
The order of those tied genes will be arbitrary, which may produce unexpected results.OUTPUT
leading edge analysis...OUTPUT
done...Visualising enriched pathways
Dotplot

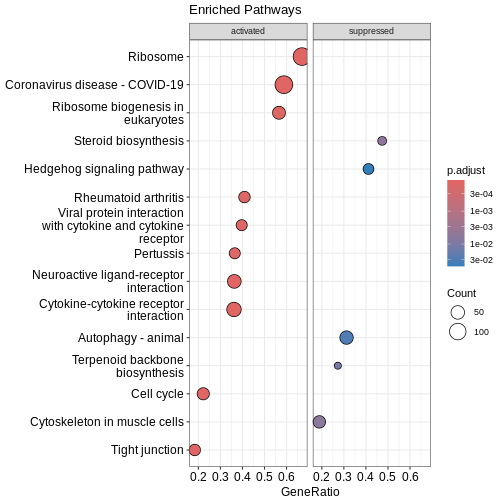

Before we look at individual pathways in detail, we can visualise the
overall enrichment results using dotplot().
This dotplot summarises which KEGG pathways are enriched, how many genes
contribute to each pathway, and how significant each one is.
R
dotplot(kk2, showCategory = 10, title = "Enriched Pathways" , split=".sign") + facet_grid(.~.sign)
### Similarity-based network plots Next, we can explore how the enriched
pathways relate to one another.

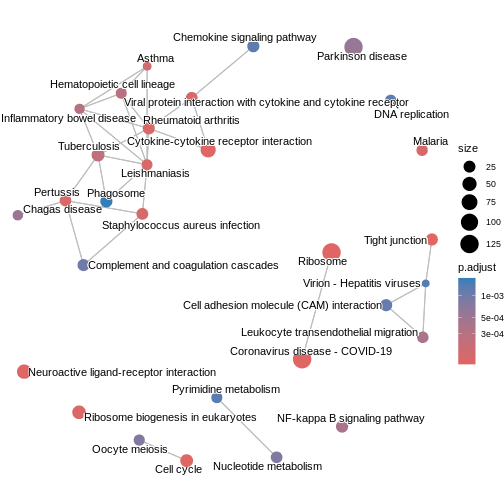

The enrichment map groups pathways that share many genes, helping us see
broader biological themes rather than isolated pathways. In this case,
pairwise_termsim() function calculates the similarity
between enriched KEGG pathways and produces a similarity matrix that
quantifies their relationship. The emapplot()generates an
enrichment map using the similarity matrix produced, visualising the
enriched pathways as a network with nodes representing pathways and
edges reflecting their similarity.
R
kk3 <- pairwise_termsim(kk2)
emapplot(kk3)
WARNING
Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
ℹ Please use `linewidth` instead.
ℹ The deprecated feature was likely used in the ggtangle package.
Please report the issue to the authors.
This warning is displayed once every 8 hours.
Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
generated.

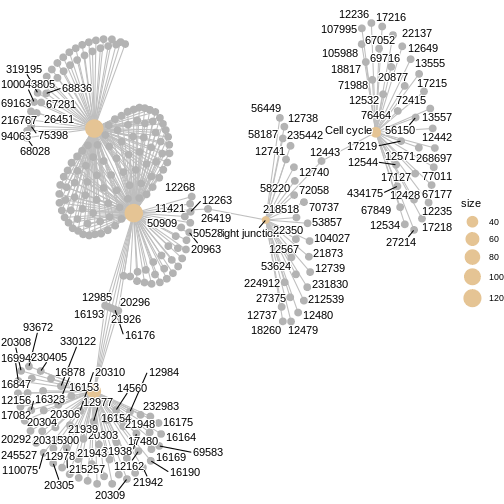

We can also use cnetplot() to understand which genes
drive these enriched pathways. This plot links genes to pathways they
belong to and highlights genes that appear in multiple pathways.
R
cnetplot(kk3, categorySize="pvalue")
WARNING
Warning: ggrepel: 160 unlabeled data points (too many overlaps). Consider
increasing max.overlaps
### Ridge plot We can also inspect the distribution of enrichment scores
across pathways with ridgeplot(). This shows how strongly
and broadly each pathway is enriched across the ranked gene list using
overlapping density curves.
R
ridgeplot(kk3) + labs(x = "enrichment distribution")
ERROR
Error in `ridgeplot.gseaResult()` at enrichplot/R/ridgeplot.R:6:15:
! The package "ggridges" is required for `ridgeplot()`.R
head(kk3)
OUTPUT
ID Description setSize
mmu05171 mmu05171 Coronavirus disease - COVID-19 216
mmu03010 mmu03010 Ribosome 188
mmu04060 mmu04060 Cytokine-cytokine receptor interaction 177
mmu04110 mmu04110 Cell cycle 153
mmu04530 mmu04530 Tight junction 147
mmu04080 mmu04080 Neuroactive ligand-receptor interaction 146
enrichmentScore NES pvalue p.adjust qvalue rank
mmu05171 0.5006706 1.946263 0.0001153802 0.0001153802 0.003343085 3724
mmu03010 0.5814136 2.226791 0.0001177302 0.0001177302 0.003343085 4733
mmu04060 0.5334229 2.030917 0.0001182313 0.0001182313 0.003343085 2003
mmu04110 0.5682774 2.130646 0.0001213298 0.0001213298 0.003343085 1287
mmu04530 0.4668123 1.743425 0.0001218918 0.0001218918 0.003343085 2221
mmu04080 0.4495919 1.678626 0.0001219066 0.0001219066 0.003343085 2287
leading_edge
mmu05171 tags=59%, list=24%, signal=46%
mmu03010 tags=67%, list=30%, signal=48%
mmu04060 tags=36%, list=13%, signal=32%
mmu04110 tags=22%, list=8%, signal=21%
mmu04530 tags=18%, list=14%, signal=16%
mmu04080 tags=36%, list=14%, signal=31%
core_enrichment
mmu05171 12266/12262/12260/12259/666501/21926/18751/12268/13058/15200/20296/12985/24088/16176/664969/50908/20344/317677/14962/17174/16785/56040/269261/667277/625018/20084/99571/19982/68436/20963/225215/22186/50528/78294/619883/16451/67186/67097/26419/20085/67671/16193/671641/20055/19951/11837/100503670/20115/27367/243302/100040416/20116/54217/27370/11421/50909/621697/100042335/76808/629595/20103/270106/268449/20088/19896/67025/68052/20090/75617/432725/20054/27050/54127/26961/67115/67891/67945/114641/22121/19946/20091/19899/20042/66489/100039532/100040298/100502825/16194/67427/66480/66481/15945/65019/19921/100043695/20068/432502/19988/19933/76846/21898/267019/665562/20102/20044/27207/100043813/670832/19981/19942/71586/19941/57294/66475/19944/66483/27176/57808/16898/22371/625281/20848/19934/110954/433745/12263/68193
mmu03010 666501/664969/16785/56040/269261/20084/56282/19982/66973/68436/225215/22186/78294/619883/67186/67097/20085/67671/671641/20055/19951/11837/100503670/20115/14694/68836/27367/243302/100040416/20116/54217/27370/621697/100042335/76808/629595/20103/270106/268449/20088/19896/67025/68052/20090/75617/432725/69163/20054/27050/54127/26961/67115/67891/67945/114641/22121/19946/20091/19899/20042/66489/59054/100039532/100040298/100502825/67427/60441/66480/66481/65019/19921/100043695/27397/20068/432502/118451/19988/19933/76846/267019/665562/79044/20102/20044/27207/100043813/78523/670832/19981/19942/66230/19941/57294/66475/19944/94063/66483/27176/57808/16898/625281/66258/19934/110954/433745/28028/68193/75398/67281/619547/319195/50529/26451/14109/19989/20104/64657/64655/68028/66407/20005/94065/216767/67308/19943/100043805
mmu04060 12978/16878/77125/20311/29820/20308/20297/20305/12977/21948/17082/16182/232983/21942/18829/21926/20310/20309/16181/330122/14563/20296/12985/230405/93672/20304/16176/12984/16153/14560/83430/16847/215257/20306/16994/16154/16164/16156/20303/16169/110075/12983/20292/16185/326623/21938/17480/19116/16190/20300/14825/16323/16175/320100/21939/12156/21943/18049/12162/245527/69583/20315/16193/13608
mmu04110 20877/434175/12235/77011/12236/76464/17218/12534/71988/268697/12428/17216/67849/17215/18817/17219/67052/105988/12532/107995/72415/22137/13555/12649/69716/12544/12442/67177/56150/12571/13557/12443/17127/27214
mmu04530 12740/18260/212539/12737/53624/218518/12739/12480/231830/27375/70737/58187/12479/72058/12443/235442/53857/12738/21873/22350/104027/26419/224912/56449/58220/12567/12741
mmu04080 12310/22044/12266/223780/19204/216643/15558/207911/14419/15559/381073/231602/13614/18619/65086/54140/12062/16336/17200/11555/11549/16847/239845/11535/53623/67405/20287/109648/20607/18441/18389/170483/18436/19116/11541/11550/11606/13618/21333/15552/193034/15465/12671/16995/11539/227717/18442/110637/381677/14062/14658/171530/11553You can see the top pathways, you can get the top pathway ID with the ID column.
R
# There must be a function that gets the results -> not ideal code
kk3@result$ID[1]
OUTPUT
[1] "mmu05171"KEGG Pathway Diagram

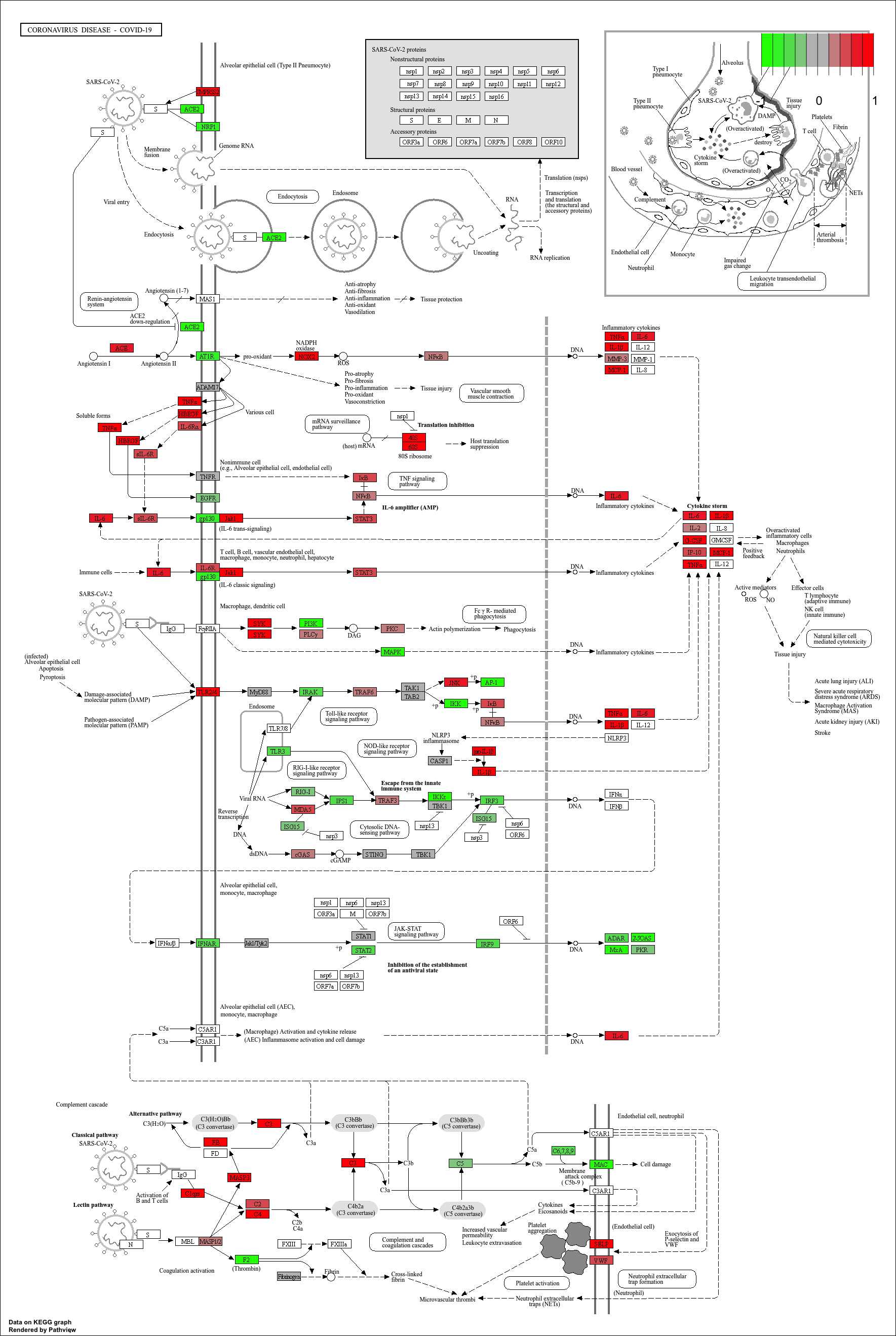

Finally, we can visualise gene expression changes directly onto a
KEGG pathway diagram.pathview highlights which components of the pathway are up-
or down-regulated in your enrichment analysis.
R
# Produce the native KEGG plot (PNG)
mmu_pathway <- pathview(gene.data=debasal_genelist, pathway.id=kk3@result$ID[1], species = kegg_organism)
These will produce these files in your working directory:
mmu05171.xml mmu05171.pathview.png mmu05171.png
KEGG pathway analysis helps link DEGs to functional biological pathways.
Both ORA (
enrichKEGG) and GSEA-style (gseKEGG) methods provide complementary insights.pathviewenables visual interpretation of pathway-level expression changes.
